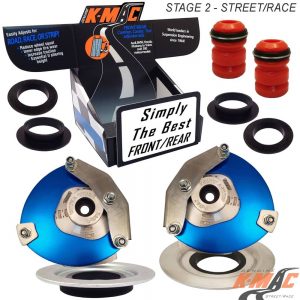

K-MAC BMW F20 F21 F22 F23 F30 F31 F32 F33 F35 F36 ‘4’ Incl.’X’, ‘1’,’2′, ‘3’, ‘4’
Front Top Strut Mounts, Camber & Caster Precisely Adjustable.
(Stage 2- Street/ Race) . # 192616- 2N . ( Pair )
( All ‘M’ Series Carbon Fibre Strut Brace See . # 192716- 2P )

Also See Below Lower Control Arm ‘Camber’ Adjustable Bushings (plus ‘Caster’ to compensate) – Track Days : Extra adjustment to increase Neg. Camber / reduce understeer- deeper into the corners with increased traction and braking response.

K-MAC are also designed to fit with OEM diam. at top of coil springs.
Also all brands of Coil-Overs 60- 70mm I.D.! Centers are also replaceable.

Genuine K-MAC – SIMPLY THE BEST

FEATURES / WHAT YOU WOULD EXPECT FROM KMAC : Change settings just in the time taken to loosen the top mount nuts (and with strut brace fitted). No disassembly or strut removal. Unique Patented design, QUICKEST / BIGGEST adjustment system. ALSO WITH KMAC IT’S NOT ONLY CAMBER – SEPARATE “CASTER” INCLUDED AS WELL.
Simply replacing the existing Strut Top Mounts (no modifications). STAGE 2 (STREET / RACE) have “Extra H/Duty” self align spherical bearings (Teflon lined). Encased in elastomer to extend life / day to day commuting. Plus specially designed OEM diameter aluminum Top Coil seats that mount on “separate” radial thrust bearings (also massive 3 3/8” / 85mm diameter) for steering loads and prevent spring drag, binding. Also included top seats to suit all popular brands of coil overs 60-70mm I.D and designed for minimum stack height.
KMAC mounts unlike other brands are not steel or soft billet alloy, but the ultimate very highest, aircraft 7075 grade aluminum for strength and reinforcing the strut towers. Along with the patented design providing the “biggest” (and quickest) adjustment system of “both Camber and Caster”. Fast accurate (under load) from engine bay direct on the alignment rack.
RESULT : Finally providing adjustment for other then “showroom height” conditions. Day to day commuting encountering high cambered roads, wheel squat through altered height – load carrying or lowering, fitting wide profile tires, curb knock damage.
THE CAPABILITY TO RESOLVE COSTLY, PREMATURE,
EDGE TIRE WEAR ALSO CORRECTLY FIX STEERING PULL.
Along with ability to improve traction, understeer/oversteer (or Track days in the pursuit of Front row of the grid Lap times).
*ALSO SEE COMPLETE RANGE OF “FRONT AND REAR BUSHINGS” All the very latest KMAC design breakthroughs to provide adjustment and resolve premature bush wear.
Bushes feature twice the load bearing and impact area of OEM and where applicable are 2 Axis / Self aligning – (without the use of oil and air voids). Result is significantly improved brake and steering response. The Camber, Caster and Toe bushings are also precisely adjustable (unique KMAC patented design – single wrench on car – accurately under load direct on alignment rack). With the lower arm “Camber” bushings providing also “extra” track width (and negative adjustment to further reduce understeer) on race days.

# 192616 – 2N . Instruction Sheet
